Eda2Alt
Automated ECAD footprint and symbol extraction for Altium
CLI powered component extraction for Altium Desginer
Eda2Alt is a simple CLI tool that is used to extract JLCPCB/EasyEDA symbols and footprints and convert them into native Altium elements. The tool will extract schematic symbols, component footprints and 3D models.
The tool takes a LCSC/JLCPCB C-Part number and generates native Altium libraries directly in an allocated directory. The current version focuses on practical reliability: session-based CLI flow, clean output folders, improved footprint/symbol parity, and robust backend handling. It is designed for fast part ingestion during PCB development while keeping generated libraries ready to open in Altium immediately.
Highlights
- Direct LCSC/EasyEDA to native Altium conversion

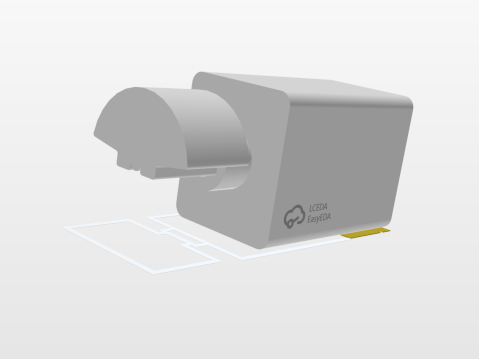

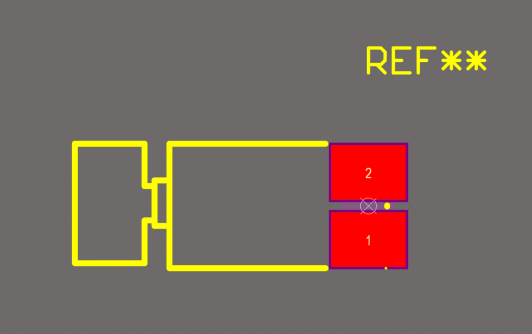

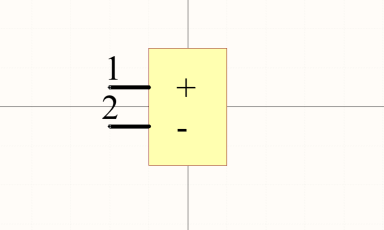

- Generates schematic symbol, footprint, and STEP 3D body

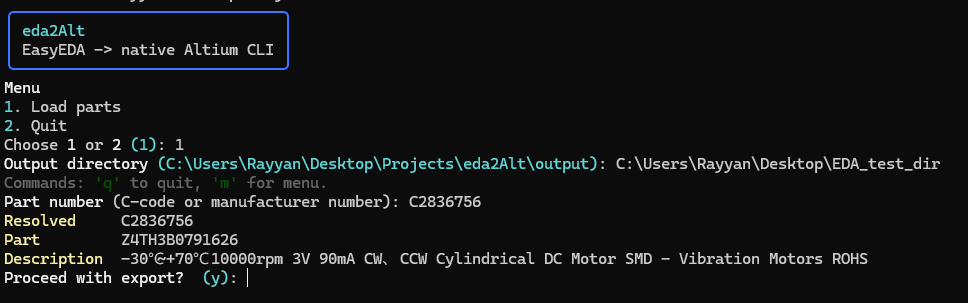

- Session-based CLI for repeated part imports into one target directory
- Clean output structure for immediate library use
What Matters
- Ready-to-open native Altium outputs in one run
- Schematic symbol, footprint, and 3D model extraction
- Clean output folders for immediate project use
- Improved symbol/footprint parity to reduce manual fixes
- Session-based CLI flow for faster part ingestion
